How to Place Cable Clips?

How to Place Cable Clips?
Aug 04 , 2025

Proper cable management is a key part of any solar installation. Whether you’re working on a residential rooftop system or a large-scale solar farm, organizing cables neatly and securely helps ensure safety, efficiency, and long-term performance. One of the most effective tools for this task is the cable clip.

Cable clips are small but essential components used to fasten solar cables along mounting rails, panel frames, or structural supports. They keep DC wires from sagging, getting tangled, or coming into contact with sharp edges or hot surfaces—all of which can cause wear and reduce system reliability.

The first step in placing cable clips is planning the cable route. Before installation, determine how the cables will run from the panels to the inverter. Consider where the strings will connect and where the excess slack should be coiled or guided. This planning ensures that clips are placed at the right intervals and no cable is left unsupported.

Clips should typically be spaced every 30–50 centimeters (about 12–20 inches), depending on the cable’s weight and exposure to wind. In high-wind areas or vertical runs, shorter intervals may be necessary. The goal is to keep the cables secure without stretching them too tightly, which could strain the connectors or damage insulation.

There are several types of cable clips, including stainless steel spring clips, plastic push-in clips, and adhesive-backed options. For outdoor solar applications, stainless steel clips are widely used due to their UV resistance, strength, and long service life. Many of these are designed to snap onto aluminum rails or the edge of a solar module frame without the need for drilling or adhesives.

When installing, ensure that the clips are pushed fully into place and the cables are seated firmly but not pinched. Avoid overlapping or crossing cables when possible, as this can trap heat or cause friction over time. Pay attention to the orientation—vertical cables should be clipped in a way that prevents downward pull on connectors.

Cable clips also help maintain a clean appearance, which is especially important for residential rooftops where visible wiring may affect aesthetics. A neat cable layout also makes future inspection or troubleshooting much easier, reducing maintenance time and cost.

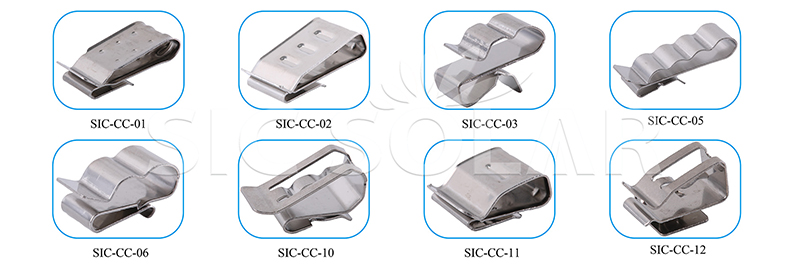

solar pv cable clips

Companies like SIC Solar, which manufacture and sell solar mounting systems, also provide cable management accessories including various types of clips designed for compatibility with their racking structures. Their clips are engineered for durability and easy installation, supporting efficient and professional cable routing across a range of solar projects.

In solar PV systems, cable clips may be small, but they perform a big role. They keep systems safe, tidy, and performing at their best under the sun for years to come.
